Prime Steel Angles / Channels / I Beams / H Beams
Honors-produced by Professional Manufacturer
From the World Famous Steel Products Origin Tangshan China


Product description

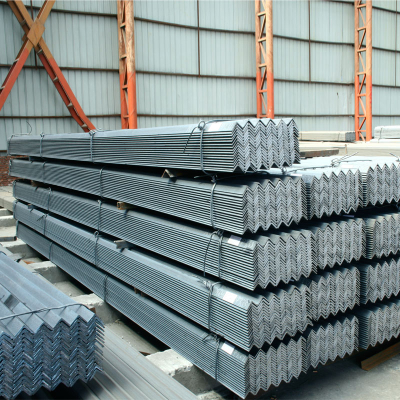

Product: equal and unequal angle
Standard: GB,JIS,EN
Grade:
Equal Angle:GB9787-88,Q235B,GB/T 1591-94,Q345B,Q420B,Q460 G3101,SS400,SS540,EN10025  S235JR/S355JR
Unequal Angle:GB9787-88,Q235B,G3101,SS400

Delivery: 15-35 days after receiving deposit or L/C
Market : Korean ,the Middle East, Africa, Europe, America,
Packing: Generally in bundle, or as the clients' requests.

Application
a.) beam, bridges, ship;
b.) transmission tower, reaction tower;
c.) lifting transportation machinery;
d.) industrial furnace;
e.) container frame, warehouse goods shelves, etc.

Size

GB Equal Angles

Angles	Size(mm)		Theoretic Weight (kg/m)		Angles	Size(mm)		Theoretic Weight (kg/m)
	B	d				B	d
2	20	3	0.889		9	90	6	8.350
		4	1.145				7	9.656
2.5	25	3	1.124				8	10.946
		4	1.459				10	13.476
3.0	30	3	1.373				12	15.940
		4	1.786		10	100	6	9.366
3.6	36	3	1.656				7	10.830
		4	2.163				8	12.276
		5	2.654				10	15.120
4	40	3	1.852				12	17.898
		4	2.422				14	20.611
		5	2.976		11	110	7	11.928
4.5	45	3	2.088				8	13.532
		4	2.736				10	16.690
		5	3.369				12	19.782
		6	3.985				14	22.809
5	50	3	2.332		12.5	125	8	15.504
		4	3.059				10	19.133
		5	3.770				12	22.696
		6	4.465				14	26.193
5.6	56	3	2.624		14	140	10	21.488
		4	3.446				12	25.522
		5	4.251				14	29.490
		8	6.568				16	33.393
6.3	63	4	3.907		16	160	10	24.729
		5	4.822				12	29.391
		6	5.721				14	33.987
		8	7.469				16	38.518
7	70	4	4.372		18	180	12	33.159
		5	5.397				14	38.383
		6	6.406				16	43.542
		7	7.398				18	48.634
		8	8.373		20	200	14	42.894
7.5	75	5	5.818				16	48.680
		6	6.905				18	54.401
		7	7.976				2	60.056
		8	9.030				24	71.168
		10	11.089
8	80	5	6.211
		6	7.376
		7 8	8.525 9.658
		10	11.874

JIS Equal Angles

Cross Size(mm)		Unit Weight(kg/m)		Cross Size(mm)		Unit Weight(kg/m)
AXB	t			AXB	t
20X20	3	0.885		80X80	6	7.32
25X25	3	1.12		80X80	7	8.48
30X30	3	1.36		80X80	8	9.55
30X30	4	1.78		90X90	6	8.25
30X30	5	2.16		90X90	7	9.59
38X38	3	1.72		90X90	8	10.9
38X38	4	2.26		90X90	9	12.2
40X40	3	1.83		90X90	10	13.3
40X40	4	2.41		100X100	6	9.22
40X40	5	2.95		100X100	7	10.7
50X50	3	2.33		100X100	8	12.1
50X50	4	3.06		100X100	10	14.9
50X50	5	3.77		120X120	8	14.7
50X50	6	4.43		120X120	10	18.2
60X60	5	4.55		120X120	12	21.5
60X60	6	5.41		130X130	9	17.9
65X65	5	5		130X130	10	19.7
65X65	6	5.91		130X130	12	23.4
65X65	8	7.66		150X150	10	22.9
70X70	5	5.37		150X150	12	27.3
70X70	6	6.38		150X150	15	33.6
70X70	7	7.35		200X200	15	45.3
75X75	5	5.76		200X200	20	59.7
75X75	6	6.85		200X200	24	71.1
75X75	7	7.94		250X250	25	93.7
75X75	8	8.92		250X250	28	104
75X75	9	9.96		250X250	35	128

European Standard Equal Angles

Specification						weight
Leg length*leg length*thickness	a	t	r1	r2	cm2	(kg/m)
(mm)
20*20*3	20	3	3.5	2	1.1	0.882
25*25*2	25	2	3.5	2	1.0	0.784
25*25*3	25	3	3.5	2	1.4	1.12
25*25*4	25	4	3.5	2	1.9	1.45
30*30*3	30	3	5	2.5	1.7	1.36
30*30*4	30	4	5	2.5	2.3	1.78
30*30*5	30	5	5	2.5	2.8	2.18
35*35*4	35	4	5	2.5	2.7	2.1
35*35*5	35	5	5	2.5	3.3	2.57
40*40*4	40	4	6	3	3.1	2.42
40*40*5	40	5	6	3	3.8	2.97
45*45*4	45	4	7	3.5	3.5	2.74
45*45*5	45	5	7	3.5	4.3	3.38
45*45*6	45	6	7	3.5	5.1	4
50*50*4	50	4	7	3.5		3.06
50*50*5	50	5	7	3.5	4.8	3.77
50*50*6	50	6	7	3.5	5.7	4.47
55*55*6	55	6	8	4	6.3	4.95
60*60*4	60	4	8	4		3.72
60*60*5	60	5	8	4	5.8	4.57
60*60*6	60	6	8	4	6.9	5.42
60*60*8	60	8	8	4	9.0	7.09
65*65*7	65	7	9	4.5	8.7	6.83
70*70*5	70	5	9	4.5		5.37
70*70*6	70	6	9	4.5	8.1	6.38
70*70*7	70	7	9	4.5	9.4	7.38
75*75*4	75	4	9	5		4.72
75*75*5	75	5	10	5		5.76
75*75*6	75	6	10	5		6.85
75*75*7	75	7	10	5	10.1	7.94
75*75*8	75	8	10	5	11.5	9.03
75*75*10	75	10	10	5		11.11
80*80*5	80	5	10	5		6.17
80*80*6	80	6	10	5	9.4	7.34
80*80*7	80	7	10	5		8.49
80*80*8	80	8	10	5	12.3	9.66
80*80*10	80	10	10	5	19.2	15.1
90*90*6	90	6	11	5.5	10.6	8.3
90*90*7	90	7	11	5.5	12.2	9.61
90*90*8	90	8	11	5.5	13.9	10.9
90*90*9	90	9	11	5.5	15.5	12.2
90*90*10	90	10	11	5.5	17.1	13.4
90*90*11	90	11	11	5.5		14.7
100*100*7	100	7	12	6		10.7
100*100*8	100	8	12	6	15.5	12.2
100*100*10	100	10	12	6	19.2	15
100*100*12	100	12	12	6	22.7	17.8
120*120*8	120	8	13	6.5	18.7	14.7
120*120*10	120	10	13	6.5	23.2	18.2
120*120*11	120	11	13	6.5	25.4	19.9
120*120*12	120	12	13	6.5	27.5	21.6
120*120*13	120	13	13	6.5		23.3
130*130*10	130	10	14	7		19.8
130*130*12	130	12	14	7	30.0	23.6
130*130*13	130	13	14	7		25.4
130*130*14	130	14	14	7		27.2
150*150*10	150	10	16	8	29.3	23
150*150*12	150	12	16	8	34.8	27.3
150*150*14	150	14	16	8	40.3	31.6
150*150*15	150	15	16	8	43.0	33.8
160*160*14	160	14	17	8.5		33.9
160*160*16	160	16	17	8.5		38.4
180*180*14	180	14	18	9		38.3
180*180*16	180	16	18	9	55.4	43.5
180*180*18	180	18	18	9	61.9	48.6
200*200*16	200	16	18	9	61.8	48.5
200*200*18	200	18	18	9	69.1	54.3
200*200*20	200	20	18	9	76.4	59.9
200*200*24	200	24	18	9	90.6	71.1

ASTM Equal Angles

Standard Sectional	Standard Sectional	Weight
Dimension (inch)	Dimension (mm)	(kg/m)
L2*2*1/4	L51*51*6.3	4.75
L2*2*3/16	L51*51*4.8	3.63
L2*2*1/8	L51*51*3.2	2.46
L3*3*5/16	L76*76*7.9	9.09
L3*3*1/4	L76*76*6.4	7.3
L3*3*3/16	L76*76*4.8	5.53
L4*4*1/2	L102*102*12.7	19.07
L4*4*7/16	L102*102*11.1	16.83
L4*4*3/8	L102*102*9.5	14.6
L4*4*5/16	L102*102*7.9	12.21
L4*4*1/4	L102*102*6.4	9.83
L5*5*1/2	L127*127*12.7	24.13
L5*5*7/16	L127*127*11.1	21.3
L5*5*3/8	L127*127*9.5	18.32
L5*5*5/16	L127*127*7.9	15.34
L6*6*5/8	L152*152*15.9	36.05
L6*6*9/16	L152*152*14.3	32.62
L6*6*1/2	L152*152*12.7	29.19
L6*6*7/16	L152*152*11.1	25.62
L6*6*3/8	L152*152*9.5	22.19
L6*6*5/16	L152*152*7.9	18.47

GB  Unequal Angles

	Thickness			Thickness
Size	Thickness(mm)	Density(kg/m)	Size	Thickness(mm)	Density(kg/m)
25X16	3	0.912	100X63	6	7.55
25X16	4	1.176	100X63	7	8.722
32X20	3	1.171	100X63	8	9.878
32X20	4	1.522	100X63	10	12.142
40X25	3	1.484	100X80	6	8.35
40X25	4	1.936	100X80	7	9.656
45X30	3	1.687	100X80	8	10.946
45X30	4	2.203	100X80	10	13.476
50X32	3	1.908	100X70	6	8.35
50X32	4	2.494	100X70	7	9.656
56X36	3	2.153	100X70	8	10.946
56X36	4	2.818	100X70	10	13.476
56X36	5	3.466	125X80	7	11.066
62X40	4	3.185	125X80	8	12.551
62X40	5	3.92	125X80	10	15.474
62X40	6	4.638	125X80	12	18.33
62X40	7	5.339	140X90	8	14.16
70X45	4	3.57	140X90	10	17.475
70X45	5	4.403	140X90	12	20.724
70X45	6	5.218	140X90	14	23.908
70X45	7	6.011	160X100	10	19.872
75X50	5	4.808	160X110	12	23.592
75X50	6	5.699	160X110	14	27.247
75X50	8	7.431	160X110	16	30.835
75X50	10	9.098	180X110	10	22.273
80X50	5	5.005	180X110	12	26.464
80X50	6	5.935	180X110	14	30.589
80X50	7	6.848	180X110	16	34.649
80X50	8	7.745	200X125	12	29.761
90X56	5	5.661	200X125	14	34.436
90X56	6	6.717	200X125	16	39.045
90X56	7	7.756	200X125	18	43.588
90X56	8	8.779

JIS Unequal Angles

Size a * b(mm)	Thickness(mm)	Weight(kg/m)		Size a * b(mm)	Thickness(mm)	Weight(kg/m)
75X50	5	4.81		150 X75	9	15.4
75X50	6	5.67		150 X75	10	17
100X50	6	6.85		150 X75	12	20.2
100X50	8	8.99		150 X75	15	24.8
100X75	6	8.04		150X90	9	16.4
100 X75	7	9.32		150X90	10	18.2
100 X75	8	10.6		150X90	12	21.6
100 X75	9	11.8		150X90	15	26.6
100 X75	10	13		150X100	9	17.1
100 X75	12	15.4		150X100	10	18.79
125 X75	7	10.7		150X100	12	22.5
125 X75	8	12.2		150X100	15	27.7
125 X75	9	13.6		200X100	10	23
125 X75	10	15		200X100	12	27.3
125 X75	12	17.8		200X100	15	33.7
150 X75	7	12.1

ASTM Unequal Angles

British Standard Specifications	Metric Size	Theoretical Weight
Side*Side*Thickness(inch)	Side*Side*Thickness(mm)	(kg/m)
L1-3/4×1-1/4×1/8	44.5*31.8*3.2	1.833
L1-3/4×1-1/4×3/16	44.5*31.8*4.7	2.414
L2×1-1/4×3/16	51*31.8*4.7	2.92
L2×1-1/4×1/4	51*31.8*6.3	3.798
L2-1/2×1-1/2×3/16	64*38*4.8	3.6
L2-1/2×1-1/2×1/4	64*38*6.4	4.8
L3×2×3/16	76*51*4.8	4.6
L3×2×1/4	76*51*6.4	6.1
L3×2×5/16	76*51*7.9	7.4
L3×2-1/2×3/16	L76*64*4.8	5.1
L3×2-1/2×1/4	L76*64*6.4	6.7
L3×2-1/2×5/16	L76*64*7.9	8.3
L3×2-1/2×3/8	L76*64*9.5	9.8
L3-1/2×2-1/2×1/4	L89*64*6.4	7.3
L3-1/2×2-1/2×5/16	L89*64*7.9	9
L3-1/2×2-1/2×3/8	L89*64*9.5	10.7
L3-1/2×2-1/2×1/2	L89*64*12.7	13.9
L3-1/2×3×1/4	L89*76*6.4	8
L3-1/2×3×5/16	L89*76*7.9	9.8
L3-1/2×3×3/8	L89*76*9.5	11.7
L3-1/2×3×1/2	L89*76*12.7	15.1
L4×3×1/4	102*76*6.4	8.6
L4×3×5/16	102*76*7.9	10.7
L4×3×3/8	102*76*9.5	12.6
L4×3×1/2	102*76*12.7	16.4
L5×3×1/4	127*76*6.4	9.8
L5×3×5/16	127*76*7.9	12.1
L5×3×3/8	127*76*9.5	14.5
L5×3×7/16	127*76*11.1	16.7
L5×3×1/2	127*76*12.7	19
L5×3-1/2×1/4	L127*89*6.4	10.4
L5×3-1/2×5/16	L127*89*7.9	12.9
L5×3-1/2×3/8	L127*89*9.5	15.4
L5×3-1/2×1/2	L127*89*12.7	20.2
L6×3-1/2×5/16	152*89*7.9	14.5
L6×3-1/2×3/8	152*89*9.5	17.3
L6 × 3-1/2 × 1/2	152*89*12.7	22.7
L6×4×5/16	L152*102*7.9	15.3
L6×4×3/8	L152*102*9.5	18.2
L6×4×7/16	L152*102*11.1	21.2
L6×4×1/2	L152*102*12.7	24
L6×4×9/16	L152*102*14.3	26.8
L6×4×5/8	L152*102*15.9	29.6
L7×4×3/8	L178*102*9.5	20.2
L7×4×7/16	L178*102*11.1	23.4
L7×4×1/2	L178*102*12.7	26.5
L7×4×5/8	L178*102*15.9	32.7
L7×4×3/4	L178*102*19	38.8
L8×4×1/2	L203*102*12.7	29
L8×4×9/16	L203*102*14.3	32.4
L8×4×5/8	L203*102*15.9	36
L8×4×3/4	L203*102*19.0	42.5
L8×4×7/8	L203*102*22.2	49.3
L8×4×1	L203*102*25.4	55.4
L8×6×1/2	L203*152*12.7	34.1
L8×6×9/16	L203*152*14.3	38.1
L8×6×5/8	L203*152*15.9	42.2
L8×6×3/4	L203*152*19	50.1
L8×6×7/8	L203*152*22.2	57.9
L8×6×1	L203*152*25.4	65.5
