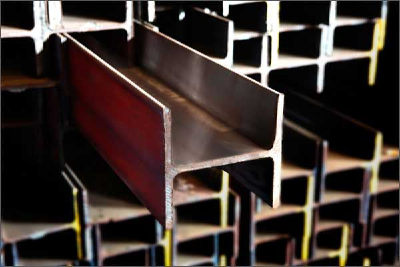

H Beam
Profuct description
Standard:GB,JIS,EN
Grade: GB9787-88, Q235B, G3101 SS400/SS540, S235JR S275JR
Application
H beam is widely used in various building structure and engineering structure:
a).used for the plant, high-rise building construction
b). used for the bridge, shipment building
c). used for lifting and transportation machinery, equipment manufacturing base building
d). used for the support, foundation pile manufacturing
GB
项目 | 容许差 | 摘要 | ||
高度 （H） | H<400 | ±2.0 | ||
400≤H<600 | ±3.0 | |||
H≥600 | ±4.0 | |||
宽度 （B） | B<100 | ±2.0 | ||
100≤B<200 | ±2.5 | |||
B≥200 | ±3.0 | |||
Thickness | t1 | t1<16 | ±0.7 | |
16≤t1<25 | ±1.0 | |||
25≤t1<40 | ±1.5 | |||
t1≥40 | ±2.0 | |||
t2 | t1<16 | ±1.0 | ||
16≤t1<25 | ±1.5 | |||
25≤t1<40 | ±1.7 | |||
t1≥40 | ±2.0 | |||
长度 | <7m | 0,+40 | ||
≥7m | 长度每增加 1m 或不足 1m 时， 对上述正偏差基础上加上 5mm | |||
垂直度 (T) | H≤300 | T≤1.0%B, 但允许偏差的最小值为 1.5mm | ||
H>300 | T≤1.2%B, 但允许偏差的最小值为 1.5mm | |||
弯曲度 | H≤300 | ≤ 长度的 0.15% | 适用于上下左右的大弯曲 | |
H>300 | ≤ 长度的 0.10% | |||
中心偏差 （S） | H≤300 且 B≤200 | ±2.5 |
| |
H>300 且 B>200 | ±3.5 | |||
腹板弯曲度 W | H<400 | ≤2.0 | ||
400≤H<600 | ≤2.5 | |||
H≥600 | ≤3.0 | |||
端面斜度 e | e≤1.6% （ H 或 B ） 但允许偏差的最小值为 3.0mm | |||
JIS
H x B | T1 | T2 | JIS Weight | GB Weight |
(mm) | (kg/m) | (kg/m) | ||
100*100 | 6 | 8 | 16.9 | 17.2 |
125*125 | 6.5 | 9 | 23.6 | 23.8 |
150*75 | 5 | 7 | 14 | 14.3 |
148*100 | 6 | 9 | 20.7 | 21.4 |
150*150 | 7 | 10 | 31.1 | 31.9 |
175*90 | 5 | 8 | 18 | 18.2 |
175*175 | 7.5 | 11 | 40.4 | 40.4 |
198*99 | 4.5 | 7 | 17.8 | 18.5 |
200*100 | 5.5 | 8 | 20.9 | 21.7 |
194*150 | 6 | 9 | 29.9 | 31.2 |
200*200 | 8 | 12 | 49.9 | 50.5 |
248*124 | 5 | 8 | 25.1 | 25.8 |
250*125 | 6 | 9 | 29 | 29.7 |
244*175 | 7 | 11 | 43.6 | 44.1 |
250*250 | 9 | 14 | 71.8 | 72.4 |
298*149 | 5.5 | 8 | 32 | 32.6 |
298*201 | 9 | 14 | 65.4 |
|
300*150 | 6.5 | 9 | 36.7 | 37.3 |
294*200 | 8 | 12 | 55.8 | 57.3 |
300*300 | 10 | 15 | 93 | 94.5 |
346*174 | 6 | 9 | 41.2 | 41.8 |
350*175 | 7 | 11 | 49.4 | 50 |
340*250 | 9 | 14 | 78.1 | 79.7 |
350*350 | 12 | 19 | 135 | 137 |
400*200 | 8 | 13 | 65.4 | 66 |
390*300 | 10 | 16 | 105 | 107 |
400*400 | 13 | 21 | 172 | 172 |
446*199 | 8 | 12 | 65.1 | 66.7 |
450*200 | 9 | 14 | 77.9 | 79.5 |
440*300 | 11 | 18 | 121 | 124 |
496*199 | 9 | 14 | 77.9 | 79.5 |
500*200 | 10 | 16 | 88.2 | 89.6 |
488*300 | 11 | 18 | 125 | 129 |
596*199 | 10 | 15 | 92.5 | 95.1 |
600*200 | 11 | 17 | 103.4 | 106 |
588*300 | 12 | 20 | 147 | 151 |
700*300 | 13 | 24 | 182 | 185 |
800*300 | 14 | 26 | 207 | 210 |
900*300 | 16 | 28 | 240.1 | 243 |
EN
Specification Depth*flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
HE 240A 230*240 | 7.5 | 12 | 60.3 |
HE 240B 240*240 | 10 | 17 | 83.2 |
HE 260A 250*260 | 7.5 | 12.5 | 68.2 |
HE 260B 260*260 | 10 | 17.5 | 93 |
HE 280A 270*280 | 8 | 13 | 76.4 |
HE 280B 280*280 | 10.5 | 18 | 103 |
HE 300A 290*300 | 8.5 | 14 | 88.3 |
HE 300B 300*300 | 11 | 19 | 117 |
HE 320A 310*300 | 9 | 15.5 | 97.6 |
HE 320B 320*300 | 11.5 | 20.5 | 127 |
英制规格 边宽 * 边宽 * 边厚 | 公制规格 边宽 * 边宽 * 边厚 | 理论重量 （ kg/m ） |
L1-3/4 × 1-1/4 × 1/8 | 44.5*31.8*3.2 | 1.833 |
L1-3/4 × 1-1/4 × 3/16 | 2.414 | |
L2 × 1-1/4 × 3/16 | 2.92 | |
L2 × 1-1/4 × 1/4 | 3.798 | |
L2-1/2 × 1-1/2 × 3/16 | 3.6 | |
L2-1/2 × 1-1/2 × 1/4 | 4.8 | |
L3 | 4.6 | |
L3 | 6.1 | |
L3 | 7.4 | |
L3 | 5.1 | |
L3 | 6.7 | |
L3 | 8.3 | |
L3 | 9.8 | |
L3 | 7.3 | |
L3 | 9.0 | |
L3 | 10.7 | |
L3 | 13.9 | |
L3 | 8.0 | |
L3 | 9.8 | |
L3 | 11.7 | |
L3 | 15.1 |
