Product Details
- Size: 5
- Place of Origin: China
- Brand Name:
- Model Number: 100*50*5*7mm-900*300*16*28mm
- Weight: 15.000 kg
Prime Steel Angles / Channels / I Beams / H Beams
Honors-produced by Professional Manufacturer
From the World Famous Steel Products Origin Tangshan China

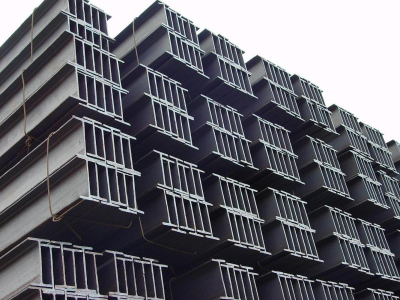

H Beam
Profuct description
Standard:GB,JIS,EN
Grade: GB9787-88, Q235B, G3101 SS400/SS540, S235JR S275JR
Application
H beam is widely used in various building structure and engineering structure:
a).used for the plant, high-rise building construction
b). used for the bridge, shipment building
c). used for lifting and transportation machinery, equipment manufacturing base building
d). used for the support, foundation pile manufacturing
Size
European Standard H Beams
| Specification | Web thickness | Flange thickness | Weight |
| Depth*flange width | (mm) | (mm) | (kg/m) |
| (mm) | |||
| HE 240A 230*240 | 7.5 | 12 | 60.3 |
| HE 240B 240*240 | 10 | 17 | 83.2 |
| HE 260A 250*260 | 7.5 | 12.5 | 68.2 |
| HE 260B 260*260 | 10 | 17.5 | 93 |
| HE 280A 270*280 | 8 | 13 | 76.4 |
| HE 280B 280*280 | 10.5 | 18 | 103 |
| HE 300A 290*300 | 8.5 | 14 | 88.3 |
| HE 300B 300*300 | 11 | 19 | 117 |
| HE 320A 310*300 | 9 | 15.5 | 97.6 |
| HE 320B 320*300 | 11.5 | 20.5 | 127 |
JIS H Beams
| Size(mm) | kg/m | Size(mm) | kg/m |
| 100*100*6*8 | 16.9 | 340*250*9*14 | 78.1 |
| 125*125*6.5*9 | 23.6 | 346*174*6*9 | 41.2 |
| 148*100*6*9 | 20.7 | 350*175*7*11 | 49.4 |
| 150*75*5*7 | 14 | 350*350*12*19 | 135 |
| 150*150*7*10 | 31.1 | 390*300*10*16 | 105 |
| 175*90*5*8 | 18 | 400*200*8*13 | 65.4 |
| 175*175*7.5*11 | 40.4 | 400*400*13*21 | 172 |
| 194*150*6*9 | 29.9 | 440*300*11*18 | 121 |
| 198*99*4.5*7 | 17.8 | 446*199*8*12 | 65.1 |
| 200*100*5.5*8 | 20.9 | 450*200*9*14 | 74.9 |
| 200*200*8*12 | 49.9 | 488*300*11*18 | 125 |
| 244*175*7*11 | 43.6 | 496*199*9*14 | 77.9 |
| 248*124*5*8 | 25.1 | 500*200*10*16 | 88.2 |
| 250*125*6*9 | 29 | 588*300*12*20 | 147 |
| 250*250*9*14 | 71.8 | 596*199*10*15 | 92.5 |
| 294*200*8*12 | 55.8 | 600*200*11*17 | 103.4 |
| 298*149*5.5*8 | 32 | 700*300*13*24 | 182 |
| 298*201*9*14 | 65.4 | 800*300*14*26 | 207 |
| 300*150*6.5*9 | 36.7 | 900*300*16*28 | 240.1 |
| 300*300*10*15 | 93 |
GB (Chinese Standard H Beams)
| Size(mm) | kg/m | SIize(mm) | kg/m | Size(mm) | kg/m |
| 100*50*5.0*7 | 9.54 | 294*302*12.0*12 | 85 | 450*200*9.0*14 | 76.5 |
| 100*100*6.0*8 | 17.2 | 298*149*5.5*8 | 32.6 | 458*417*30.0*50 | 415 |
| 125*50*6.0*8 | 13.3 | 300*150*6.5*9 | 37.3 | 482*300*11.0*15 | 115 |
| 125*125*6.5*9 | 23.8 | 300*300*10.0*15 | 94.5 | 488*300*11.0*18 | 129 |
| 148*100*6.0*9 | 21.4 | 300*305*15.0*15 | 106 | 496*199*9.0*14 | 79.5 |
| 150*75*5.0*7 | 14.3 | 340*250*9.0*14 | 79.7 | 498*432*45.0*70 | 605 |
| 150*150*7.0*10 | 31.9 | 344*348*10.0*16 | 115 | 500*200*10.0*16 | 89.6 |
| 175*90*5.0*8 | 18.2 | 346*174*6.0*9 | 41.8 | 506*201*11.0*19 | 103 |
| 175*175*7.5*11 | 40.4 | 350*175*7.0*11 | 50 | 582*300*12.0*17 | 137 |
| 194*150*6.0*9 | 31.2 | 350*350*12.0*9 | 137 | 588*300*12.0*20 | 151 |
| 198*99*4.5*7 | 18.5 | 390*300*10.0*16 | 107 | 594*302*14.0*23 | 175 |
| 200*100*5.5*8 | 21.7 | 394*398*11.0*18 | 147 | 596*199*10.0*15 | 95.1 |
| 200*200*8.0*12 | 50.5 | 396*199*7.0*11 | 56.7 | 600*200*11.0*17 | 106 |
| 200*204*12.0*12 | 56.7 | 400*200*8.0*13 | 66 | 606*201*12.0*20 | 120 |
| 244*175*7.0*11 | 44.1 | 400*400*13.0*21 | 172 | 692*300*13.0*20 | 166 |
| 248*124*5.0*8 | 25.8 | 400*408*21.0*21 | 197 | 700*300*13.0*24 | 185 |
| 250*125*6.0*9 | 29.7 | 414*405*18.0*28 | 233 | 792*300*14.0*22 | 191 |
| 250*250*9.0*14 | 72.4 | 428*407*20.0*35 | 284 | 800*300*14.0*26 | 210 |
| 250*255*14.0*14 | 82.2 | 440*300*11.0*18 | 124 | 890*299*15.0*23 | 213 |
| 294*200*8.0*12 | 57.3 | 446*199*8.0*12 | 66.7 | 900*300*16.0*28 | 243 |
