- Size: 5
- Place of Origin: China
- Brand Name:
- Model Number: Ipeaa140 Ipeaa160 Ipeaa180
- Weight: 15.000 kg

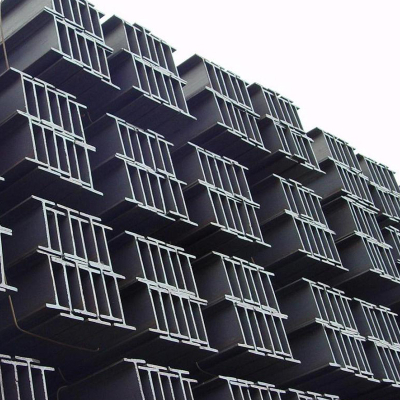

I Beam & IPE
Production description
Standard:JB,EN,JIS
Grade:GB9787-88,Q235B,EN10025 S235JR,G3101 SS400/SS490/SS540
Packing:Export packing, in bundles
Application
Widely used in various building structures, bridges, vehicles, brackets, machinery, etc., for example, the industrial structure of the steel bearing bracket,steel piles and underground, engineering supporting structure, petro chemical and power and other industrial equipment structure, shipbuilding, machinery manufacturing frame structure,train, car,tractor beam bracket, port conveyors,high speed shutter stents.
Name | Channel Bar |
Key words | Channel bar , U channel , |
Grade | Q235 , G3101 , SS400 , EN10025 , S235JR etc |
MOQ | |
Length | 6m , 12m or or customized |
Packing | |
Delivery | Within |
GB standard sizes :
Size | H(mm) | B(mm) | T(mm) | KG/m |
5 | 50 | 37 | 4.5 | 5.438 |
6.3 | 63 | 40 | 4.8 | 6.634 |
8 | 80 | 43 | 5 | 8.045 |
10 | 100 | 48 | 5.3 | 10.007 |
12 | 120 | 53 | 5.5 | 12.059 |
14A | 140 | 58 | 6 | 14.535 |
14B | 140 | 60 | 8 | 16.733 |
16A | 160 | 63 | 6.5 | 17.24 |
16B | 160 | 65 | 8.5 | 19.752 |
18A | 180 | 68 | 7 | 20.174 |
18B | 180 | 70 | 9 | 23 |
20A | 200 | 73 | 7 | 22.637 |
20B | 200 | 75 | 9 | 25.777 |
22A | 220 | 77 | 7 | 24.999 |
22B | 220 | 79 | 9 | 28.453 |
25A | 250 | 78 | 7 | 27.41 |
25B | 250 | 80 | 9 | 31.335 |
28A | 280 | 82 | 7.5 | 31.427 |
28B | 280 | 84 | 9.5 | 35.823 |
30A | 300 | 85 | 7.5 | 34.463 |
30B | 300 | 87 | 9.5 | 39.173 |
32A | 320 | 88 | 8 | 38.083 |
32B | 320 | 90 | 10 | 43.107 |
36A | 360 | 96 | 8 | 47.814 |
36B | 360 | 98 | 11 | 53.166 |
40A | 400 | 100 | 10.5 | 58.928 |
40B | 400 | 102 | 12.5 | 65.208 |
JIS standard sizes
H(mm) | B(mm) | T1(mm) | T2(mm) | KG/m |
50 | 25 | 3.00~5.00 | 6 | 2.37~3.46 |
75 | 40 | 3.8 | 7 | 5.30 |
75 | 40 | 4 | 7 | 5.60 |
75 | 40 | 4.5 | 7 | 5.85 |
100 | 50 | 3.8 | 6 | 7.30 |
100 | 50 | 3.8 | 6 | 7.30 |
100 | 50 | 4.2 | 6 | 8.03 |
100 | 50 | 4.5 | 7.5 | 8.97 |
100 | 50 | 5 | 7.5 | 9.36 |
125 | 65 | 5.2 | 6.8 | 11.66 |
125 | 65 | 5.3 | 6.8 | 12.17 |
125 | 65 | 5.5 | 8 | 12.91 |
125 | 65 | 6 | 8 | 13.40 |
150 | 75 | 5.5 | 7.3 | 14.66 |
150 | 75 | 5.7 | 10 | 16.71 |
150 | 75 | 6 | 10 | 17.90 |
150 | 75 | 6.5 | 10 | 18.60 |
200 | 80 | 7.5 | 11 | 24.60 |
250 | 90 | 9 | 13 | 34.60 |
300 | 90 | 9 | 13 | 38.10 |
EUROPEAN standard
Size | H(mm) | B(mm) | T1(mm) | T2(mm) | KG/m |
UPN80 | 80 | 45 | 6 | 8 | 8.64 |
UPN100 | 100 | 50 | 6 | 8.5 | 10.6 |
UPN120 | 120 | 55 | 7 | 9 | 13.4 |
UPN140 | 140 | 60 | 7 | 10 | 16 |
UPN160 | 160 | 65 | 7.5 | 10.52 | 18.8 |
UPN180 | 180 | 70 | 8 | 11 | 22 |
UPN200 | 200 | 75 | 8.5 | 11.5 | 25.3 |
UPE80 | 80 | 40 | 4.5 | 7.4 | 7.05 |
UPE100 | 100 | 46 | 4.5 | 7.6 | 8.59 |
UPE120 | 120 | 52 | 4.8 | 7.8 | 10.4 |
UPE140 | 140 | 58 | 4.9 | 8.1 | 12.3 |
UPE160 | 160 | 64 | 5 | 8.4 | 14.2 |
UPE180 | 180 | 70 | 5.1 | 8.7 | 16.3 |
UPE200 | 200 | 76 | 5.2 | 9 | 18.4 |
